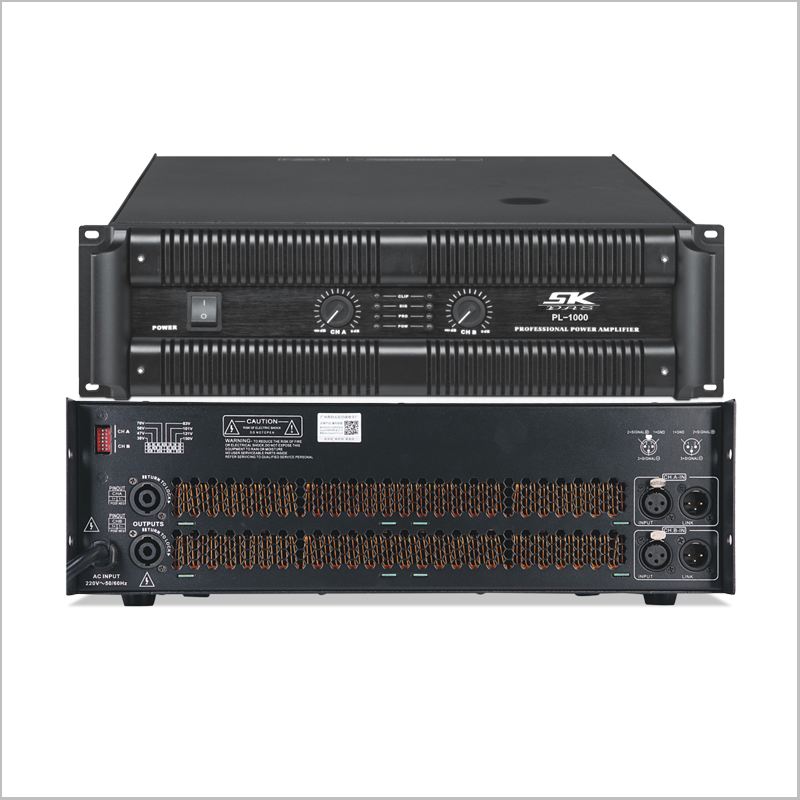

PL丨3U High power amplifier
PL丨3U High power amplifier
- Product details
- Product brief
| 型号MODEL | PL-800 | PL-1000 | PL-1200 | PL-1400 |
| Stereo power 8Ω | 2*800W | 2*1000W | 2*1200W | 2*1400W |
| Stereo power 4Ω | 2*1400W | 2*1600W | 2*1850W | 2*2100W |
| Bridging power 8Ω | 2600W | 3000W | 3700W | 4200W |
| Input common mode rejection ratio | ＞80dB | |||
| THD | 1KHz＜0.01%；20Hz-20KHz＜0.03% | |||
Signal to noise | -103dB | |||
| Input sensitivity | 0.775（0dB）1.22V 1.6V | |||
| Damping coefficient | ＞200@8Ω | |||
| Frequency response | 20Hz-20KHz+0/-0.5dB | |||
| Input impedance | 20KΩ balance | |||
| Cooling mode | Intelligent speed-adjusting circuit cooling system，Air flows from front to rear | |||
| Protection way | Short circuit, open circuit, over-heat, ULF and so on protection | |||
| Power specifications | AC 220V@30AMPS | |||
| Size | 458mm*535mm*132mm | |||
| Package size | 640mm*590mm*180mm | |||
| Net Weight | 31.4Kg | 30.9Kg | 34.35Kg | |
Model
PL-800/1000/1200/1400
