JL Series
JL Series
- Product details
- Product brief
| 型号MODEL | JL-4 | JL-6 | JL-8 |
| 8ΩRated Power | 2x400W | 2x600W | 2x800W |
| 4Ωrated power | 2x600W | 2x900W | 2x1200W |
| (+0/-1.5dB，1W/8Ω) | 20Hz-20KHz，±0.5dB | ||
| 20 Hz-20 kHz 1W | ≤0.5%，1KHz，1/3 Rrte Power ，8Ω | ||
| Signal to noise | ≥118dB | ||
Channel separation (crosstalk) 1kHz | >80dB | ||
| Input Connector | XLR | ||
| Output Connector | Speakon | ||
| Input impedance | 10KΩ，BALANCE/20KΩ，UNBALANCE | ||
| Cooling mode | Stepless speed regulation fan, airflow from front to rear | ||
| Power amplifier protection way | Peak voltage limit, DC, overheating, soft start | ||
| Power Specifications | 220-240V 50-60Hz | ||

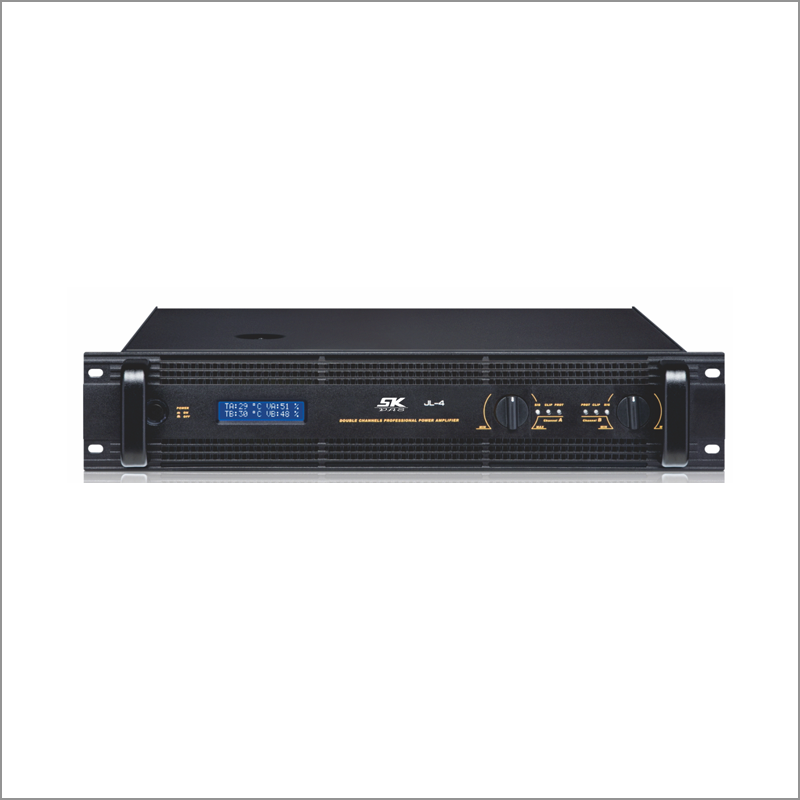

Model
JL-4/JL-6/JL-8
