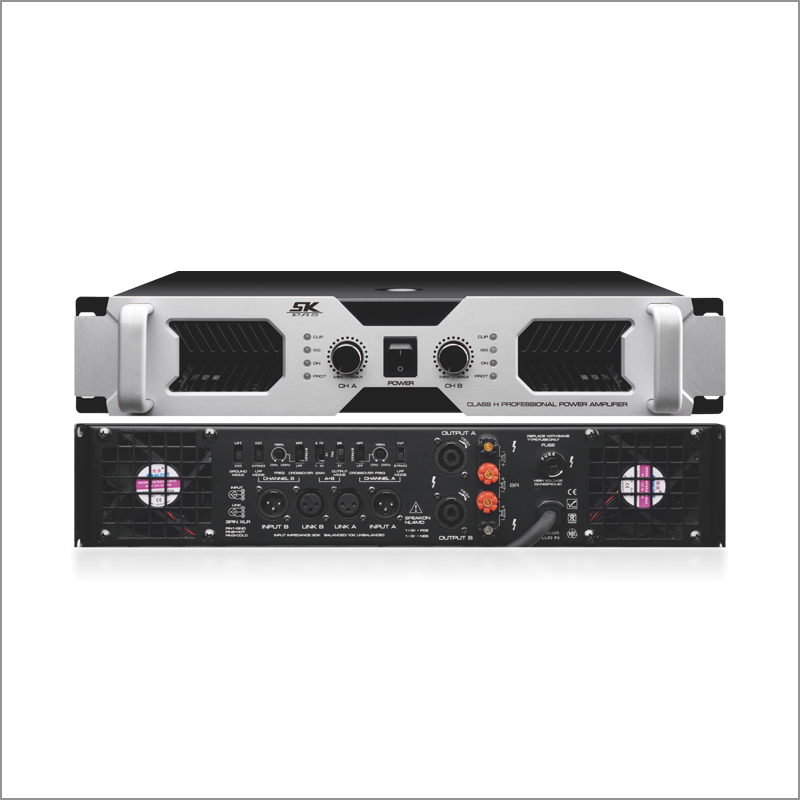

NP-800/1000
NP-800/1000
- Product details
- Product brief
| 型号MODEL | NP-1200 | NP-1400 | NP-1600 |
| STEREO POWER(8Ω) | 2x1200W | 2x1400W | 2x1600W |
| STEREO POWER(4Ω) | 2x1800W | 2x22100W | 2x2400W |
| STEREO POWER(2Ω) | 2x2700W | 2x3150W | 2x3600W |
| Bridge power(8Ω) | 3600W | 4200W | 4800W |
| Bridge power(4Ω) | 5400W | 6300W | 7200W |
| SIGNAL TO NOISE | ≥110dB | ≥110dB | ≥110dB |
| SLEW RATE | 100V/uS | 103V/uS | 105V/uS |
| DAMPING FACTOR | ≥420 | ≥400 | ≥380 |
| FREQUENCY RESPONSE | 20Hz-20KHz,±0.5dB | ||
| THD+N | ≦0.5%,1KHz,1/3Rate Power,8Ω | ||
| IMD | ≦0.1%,1KHz,1/3Rate Power,8Ω | ||
| CROSS TALK | ≥88dB | ≥88dB | ≥90dB |
| INPUT SENSITIVITY | 0dBv(1V),BALANCE | ||
| INPUT IMPEDANCE | 20KΩ,BALANCE/10KΩ,UNBALANCE | ||
| INDICATOR | ACTIVE SIGNAL(-40dB),CLIP(PEAK),PROTECTION | ||
| INSTALL SIZE | 36kg | 39kg | 42kg |
| GROSS WEIGHT | 38kg | 41kg | 44kg |
| SIZE | 483Wx495Dx132H | ||
| POWER SUPPLY | 220VAC±10%@50Hz | ||
Model
NP-800/1000
